Krídlová brána kombinovaná s posuvnou bránou

Wing gate in combination with cantilever gate, entrance gate for pedestrians and fence parts

The following project is the first of its kind. Its content consists of a single-leaf gate, which, together with a sliding cantilever gate, is opened and closed using Italian drives. These drives are enriched with the highest possible additional equipment, i.e. built-in LED lighting, beacon, photocells and, in addition to normal opening, they also have the option of being controlled using mobile devices. The pedestrian entrance gate itself has automation, which clients can easily open from the comfort of their homes. Including this, clients also have the visual possibility of monitoring who is moving in front of the gate with the help of a video doorman. The goal hardware is made of stainless steel. The end of the project is made up of fence parts, which, together with the gate and gate, have cover strips that perform a visual or security function. The clients chose a blind slat in an anthracite color with a fine structure as a model.

Client: Tomáš M.

Place: Bidovce

Date: 24/09/2020

Order from the customer

The client looked for our company during the implementation of a project that was in his neighborhood. He liked our work, so he decided to have a price offer created with us. During the personal meeting, the client and I went over all the necessary data to create an offer, i.e. the dimensions of individual openings, details of accessories and the like. In the full introduction, we focused on all the openings and the question came about the opening for the gate. Initially, we took photos of everything and agreed that in the near future we would contact the client with a custom proposal. It was necessary to come up with a tailor-made proposal for the client to integrate a cantilever gate into a small space for sliding the gate. The idea of using a single-leaf gate for one side and a sliding gate for the other occurred to us right at the point of focus, but it was necessary to think over the whole idea and go over it mainly with our technician to see if we can process something like that. Our technician looked at our idea, recalculated all the necessary data, looked at the photos from the focus. In the end, he gave us the green light, meaning that it was possible to produce and assemble something like that. So we calculated a price offer for the client, we contacted him with the given offer and the possibility of combining gates. The client liked our expert and tailor-made proposal and agreed with all of them. So production could start.

01.

Dimension of holes

Opening for gates – 5525mm x 1300mm

Pedestrian gate – 1085mm x 1300mm

Fence parts – 1535mm x 540mm

02.

Pattern

03.

Color

RAL 7016 fine structure – anthracite

04.

Accessories

– KEY SUN drive (LED lighting, beacon, photocells)

– KEY RAY DRIVE (LED lighting, beacon, photocells)

– KUBE – phone control

– Cover system

– Stainless steel fittings

–  Video – doorman with an electromagnetic lock

–  Rubber gasket

Project realisation

As we informed the client, the production process took 8 weeks from the binding order. Including our work, the work of the zinc plant and the work of the paint shop were also needed. Since our products are all hot-dip galvanized, the process of anti-corrosion protection by hot-dip galvanizing took place in the galvanizing plant. In the paint shop, the process of powder coloring with paint fired in the oven took place. These processes are an essential part of every order. The production of individual gates, entrance gates and fence parts took place without any problems. This is also one of the advantages of experienced, professionally educated and certified technicians. At the stage when the order reached the last production process, i.e. the powder coating process, we contacted the client and agreed on an assembly date. The assembly itself was somewhat more demanding due to the given combination of gates. Thanks to the precise focus, we can say the focus to the centimeter, the gates beautifully covered the entire space. At the same time, when opening and closing, the gates precisely touch each other. The installation of the fence parts and the entrance gate was a little easier and went without any problems. Although the overall assembly took us a little longer, both we and our client were satisfied with the final result. You can see how the gates open and close on our Facebook page.

Krídlová brána kombinovaná s posuvnou bránou

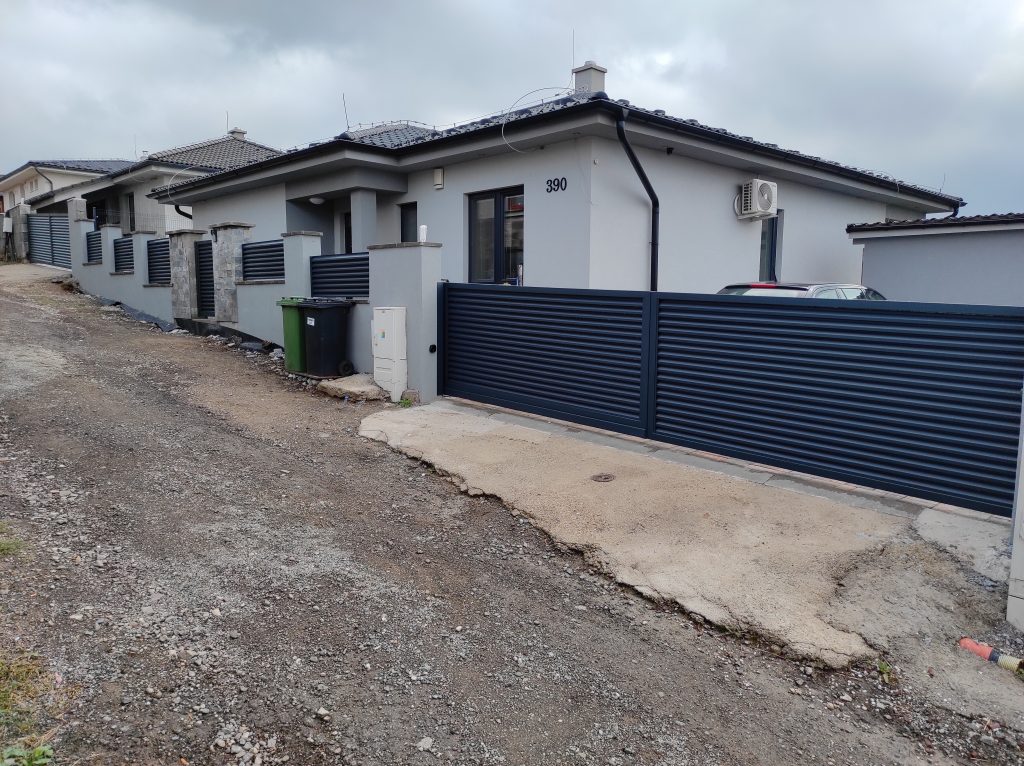

General view

Krídlová brána kombinovaná s posuvnou bránou

View from the inside

Krídlová brána kombinovaná s posuvnou bránou

A view of the gates

Krídlová brána kombinovaná s posuvnou bránou

A view of the gates

Krídlová brána kombinovaná s posuvnou bránou
View from the inside
Krídlová brána kombinovaná s posuvnou bránou

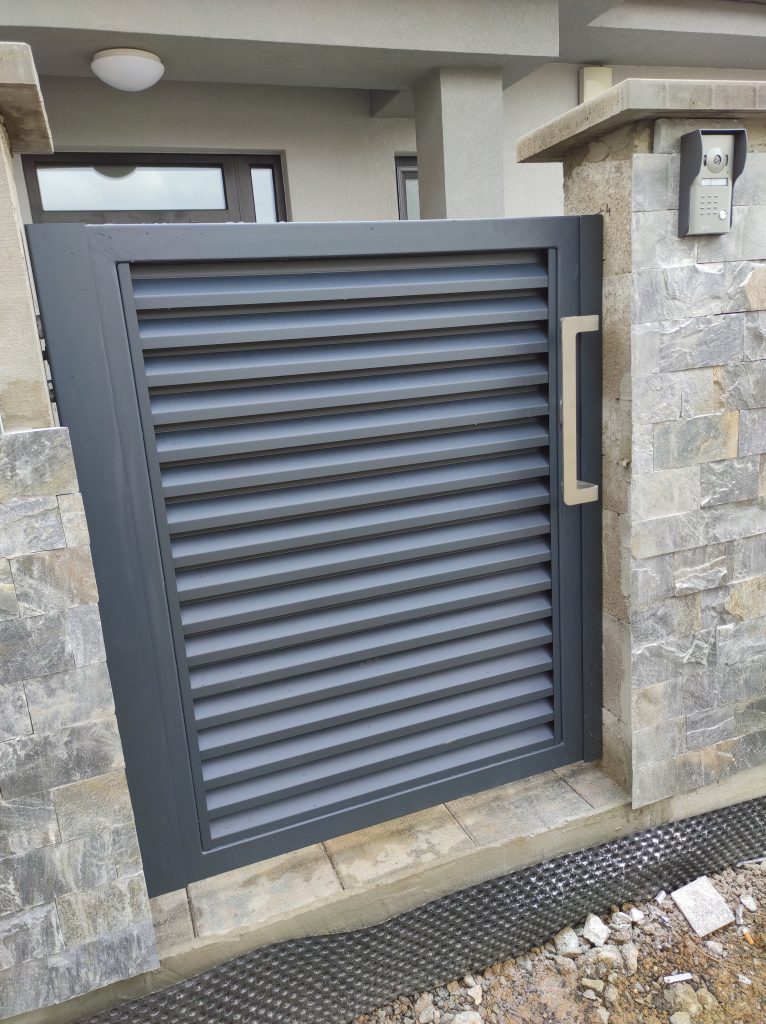

Pedestrian gate with fence parts

Krídlová brána kombinovaná s posuvnou bránou

Fence parts

Krídlová brána kombinovaná s posuvnou bránou

Fence parts

Krídlová brána kombinovaná s posuvnou bránou

Fence parts

Krídlová brána kombinovaná s posuvnou bránou

Goal from the outside

Krídlová brána kombinovaná s posuvnou bránou

Pedestrian gate from the inside
