Fencing of the entire plot with a gate and pedestrian gate

VISIO systems in Croatia? It is half true, but to put everything in perspective, it is a village in the western part of Slovakia called Crovátsky Grob. Since last week, you can find one of the more extensive projects that our company has successfully delivered in that village. The whole project consisted of a cantilever gate with an Italian KEY drive with the highest additional equipment, a barrier with stainless steel accessories and an actually designed stainless steel house number and final fencing. The scope of the contract was ensured by the fence parts, the total length of which is 50 meters. You can find all the details, details and photos from the implementation in this article.

Client: Michaela R.

Place: Chorvátsky Grob

Date: 28/10/2020

Order from the customer

The procedure of how the entire process takes place from contacting, personal meeting, focusing, creating a price offer is the same as for every single client. Of course, each client has their own specific requirements and suggestions, which we will review together and fulfill the given suggestions. However, if we were to go over the given project in detail in a nutshell, the first step for the client was to create an indicative price offer based on the supplied details and dimensions. Over time, we fine-tuned the offer and agreed on the final solution. Since the client only had an approximate idea of how it would all look, and an investment in something like this is an investment for a lifetime, we agreed that we would use our graphics to create a visualization of what it would look like in the end. We have created 3 visualizations which you can find below in 3 different patterns. Based on these visualizations, the client chose the final pattern, i.e. premium 004, and we were able to start production.

01.

Dimension of holes

Cantilever gate – 3000mm x 1500mm

Pedestrian gate – 1000mm x 1500mm

Fence parts – 22x 2000mm x 1000mm

02.

Pattern

03.

Color

RAL 7016 fine structure – anthracite

04.

Accessories

– Italian KEY SUN drive (LED lighting, beacon, photocells)

– KUBE – control of the drive with a mobile application

– Covering system (covering slats, covering sheet, covering gate stop L-ko, fence covering slats, columns with implemented covering slats)

– Stainless steel house number

– Stainless steel fittings

–  Rubber gasket





Project realisation

In these lines, we would like to tell you what makes this project specific, and this time we would leave out the basic information about color, delivery, etc., because these high-quality activities are a matter of course for everyone one project. The complete novelty that we used are the columns, which have their own covering system and thus not only cover unwanted openings and thus give the project a more beautiful visual, but also fulfill a security function. You can find these columns below. Another new element was a laser-burnt stainless house number for the client. Cover strips for the gate, diaphragm, rubber seals, high-quality KEY brand drive with the highest additional equipment and the possibility of control by phone are a matter of course. In conclusion, we would just like to point out that the entire assembly took place within 2 days and at the end of the second day we handed over the entire turnkey order to the client. Photos and videos of the implementation can be found below.

Samonosná brána s bráničkou a oplotením

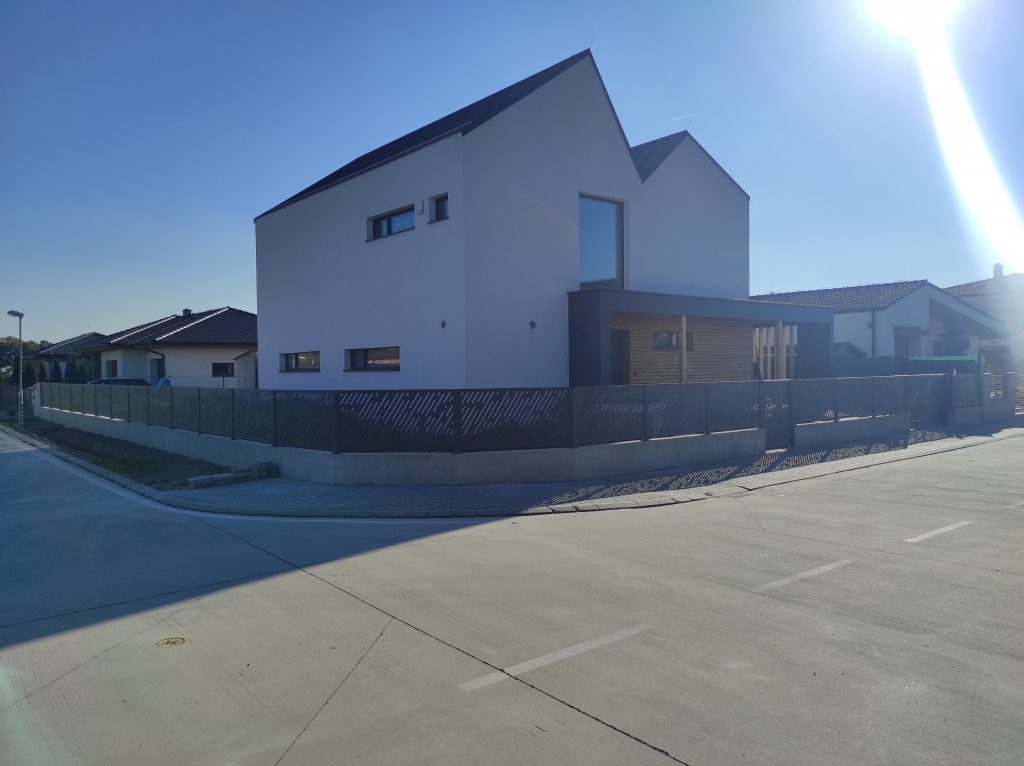

General view

Samonosná brána s bráničkou a oplotením

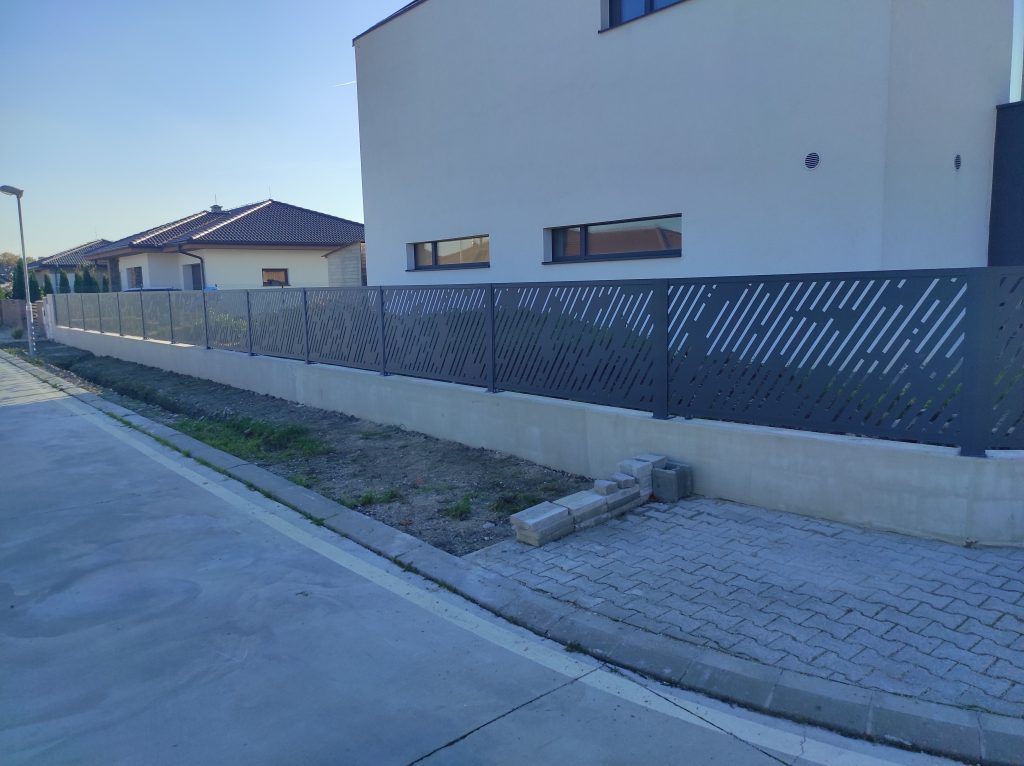

Side view

Samonosná brána s bráničkou a oplotením

Side view from the other side

Samonosná brána s bráničkou a oplotením

Front view

Samonosná brána s bráničkou a oplotením

View of the corner section

Samonosná brána s bráničkou a oplotením

View of the corner part from the mountain

Samonosná brána s bráničkou a oplotením

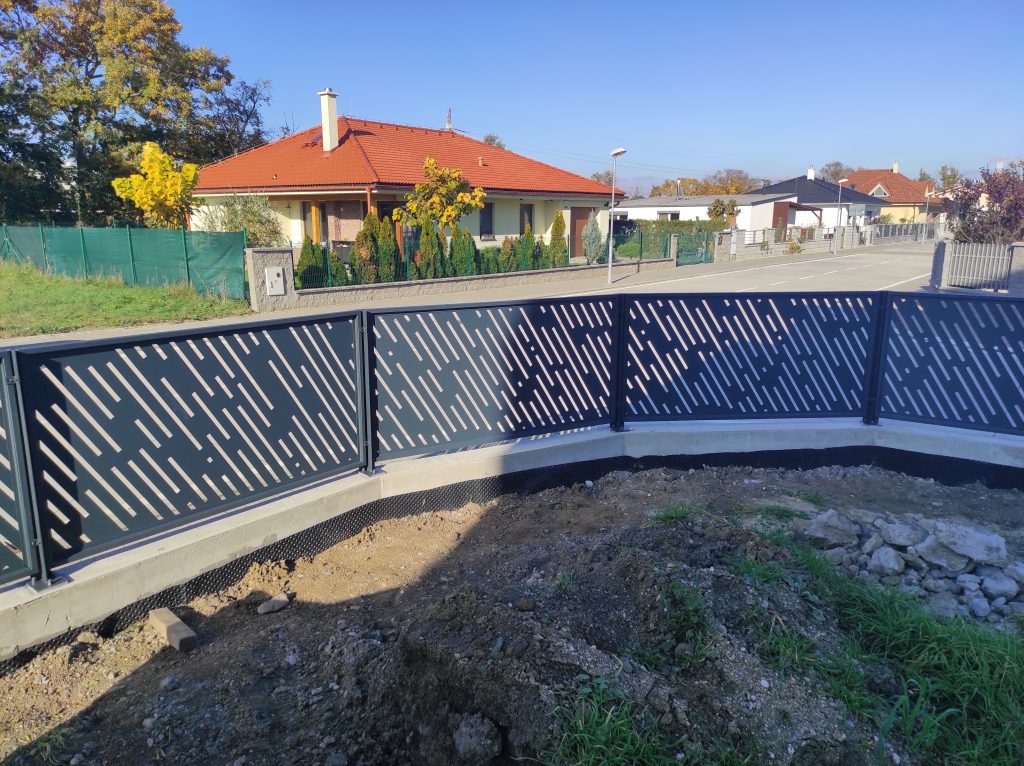

View of the corner section from the inside

Samonosná brána s bráničkou a oplotením

Side view from the inside

Samonosná brána s bráničkou a oplotením

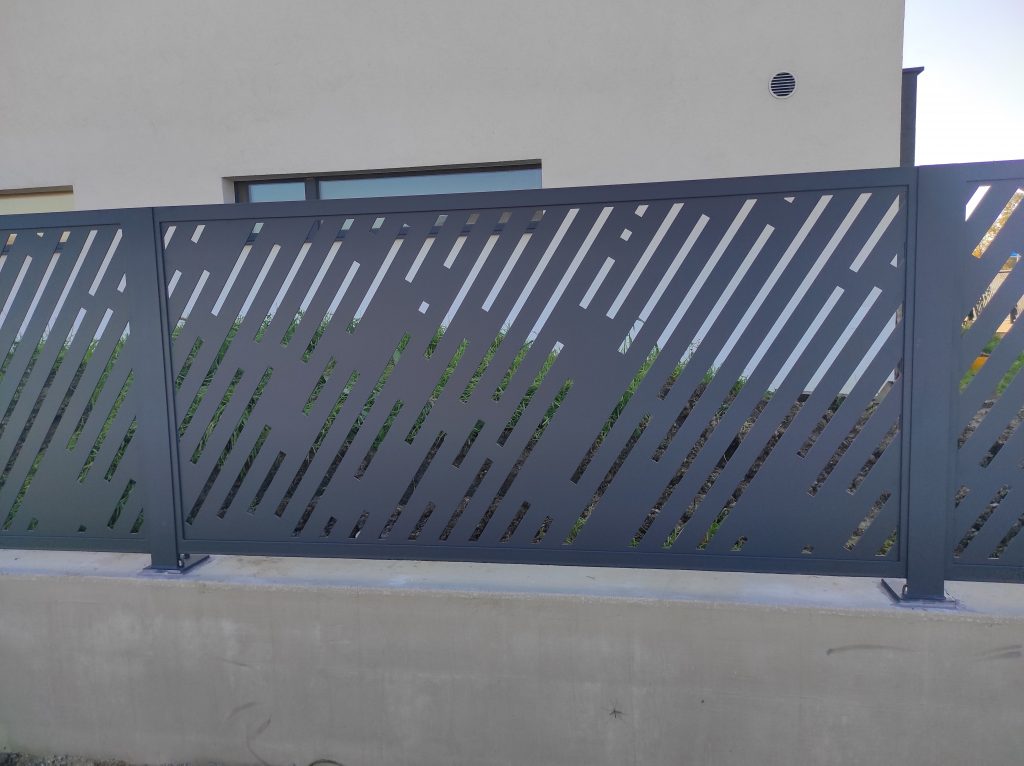

Fence panel

Samonosná brána s bráničkou a oplotením

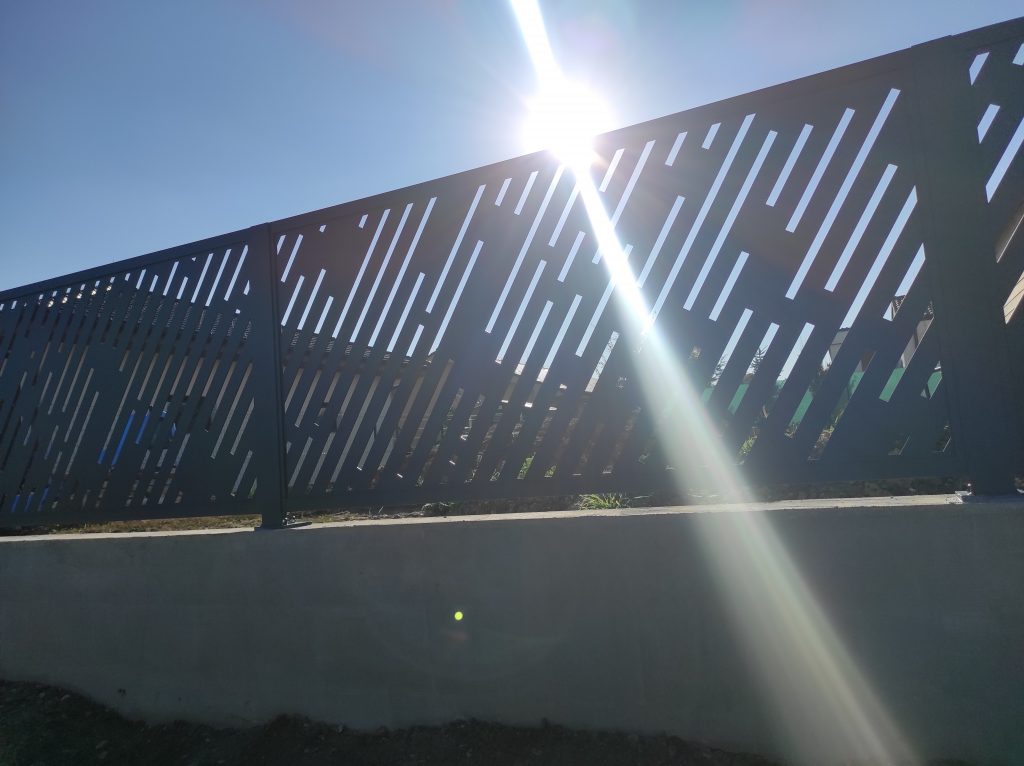

Fence parts

Samonosná brána s bráničkou a oplotením

Cantilever gate

Samonosná brána s bráničkou a oplotením

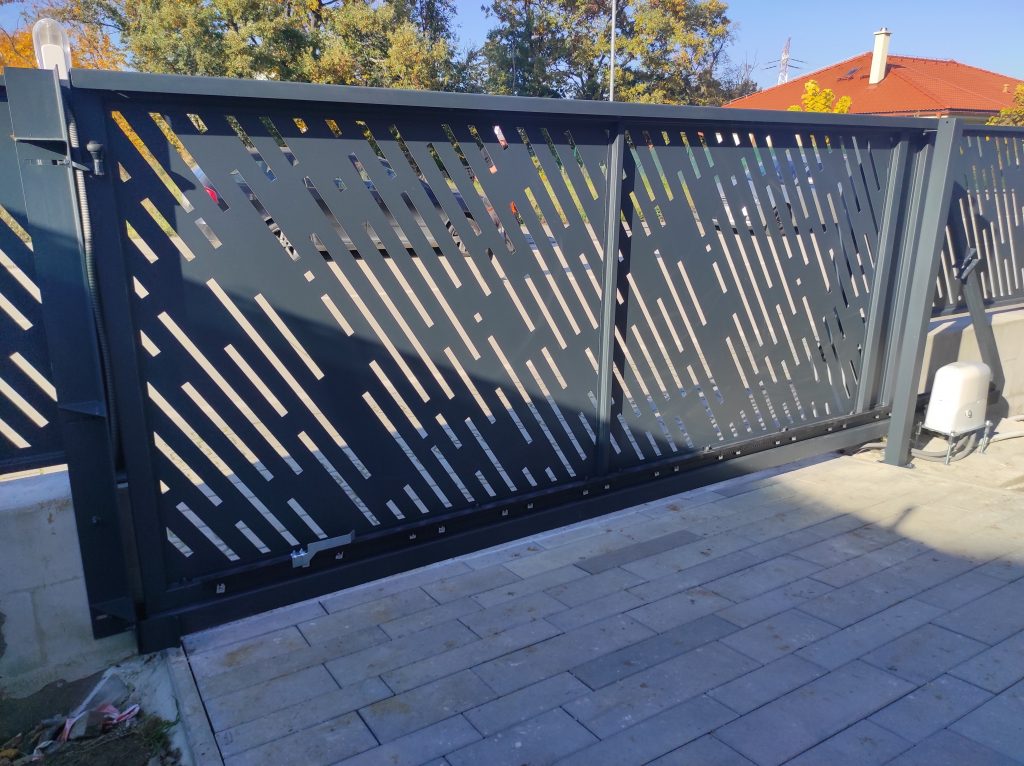

Cantilever gate from the inside

Samonosná brána s bráničkou a oplotením

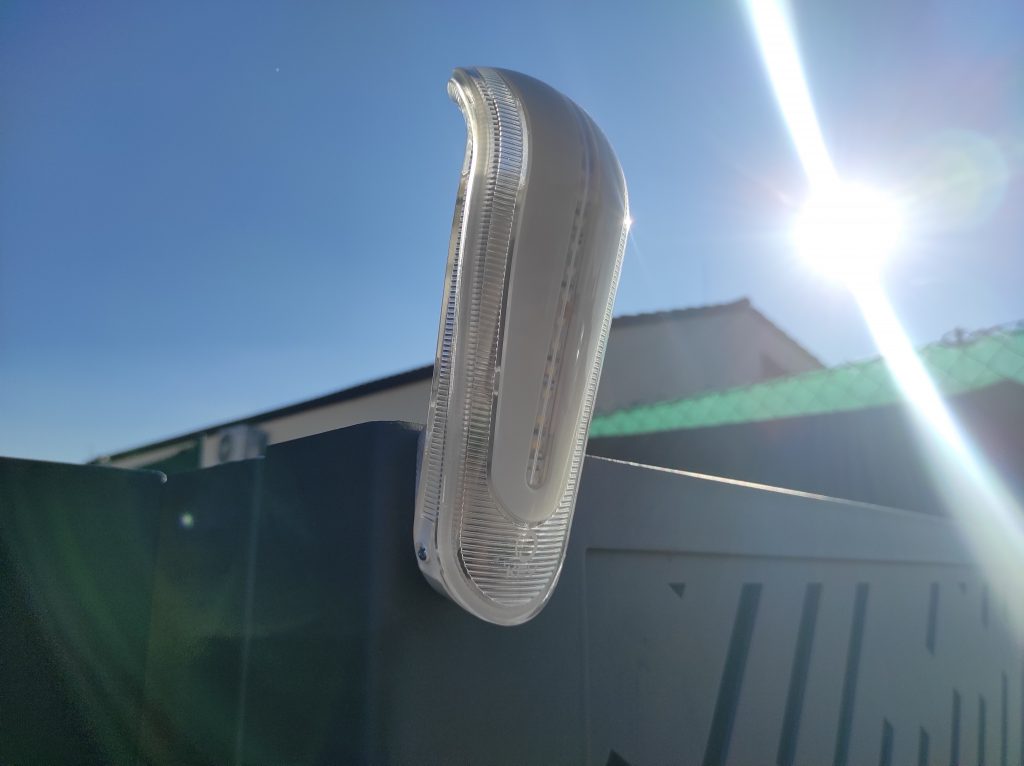

Beacon to drive

Samonosná brána s bráničkou a oplotením

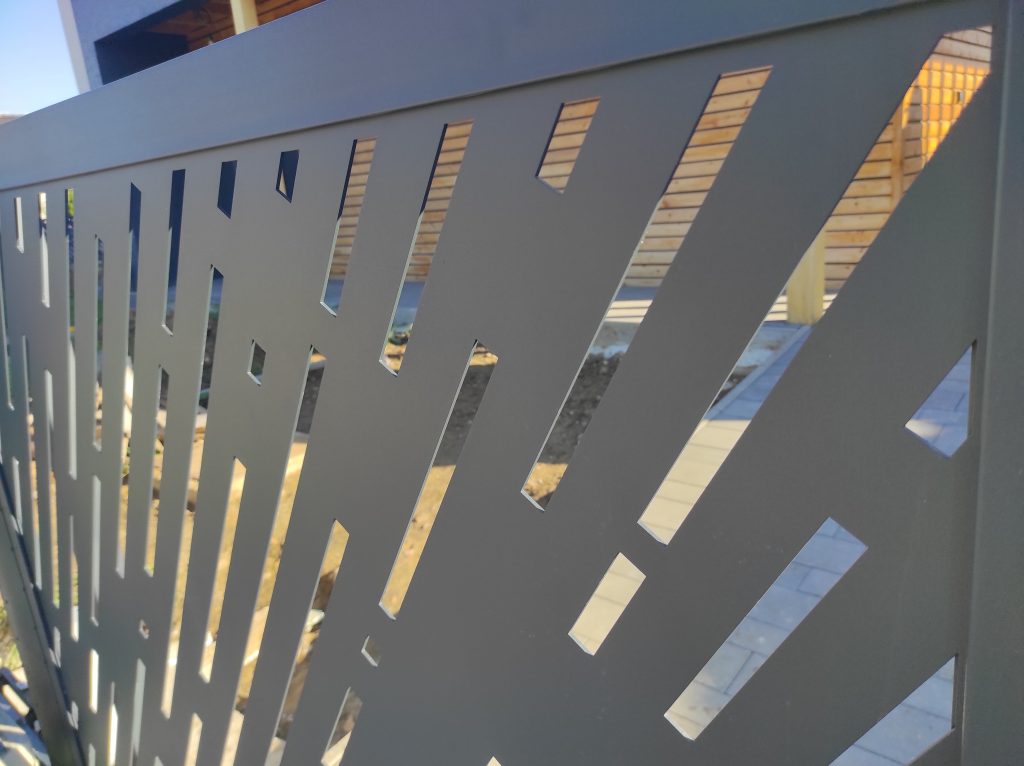

Detail of the PREMIUM 004 pattern

Samonosná brána s bráničkou a oplotením

Detail of the cover system

Samonosná brána s bráničkou a oplotením

Stainless steel house number

Samonosná brána s bráničkou a oplotením

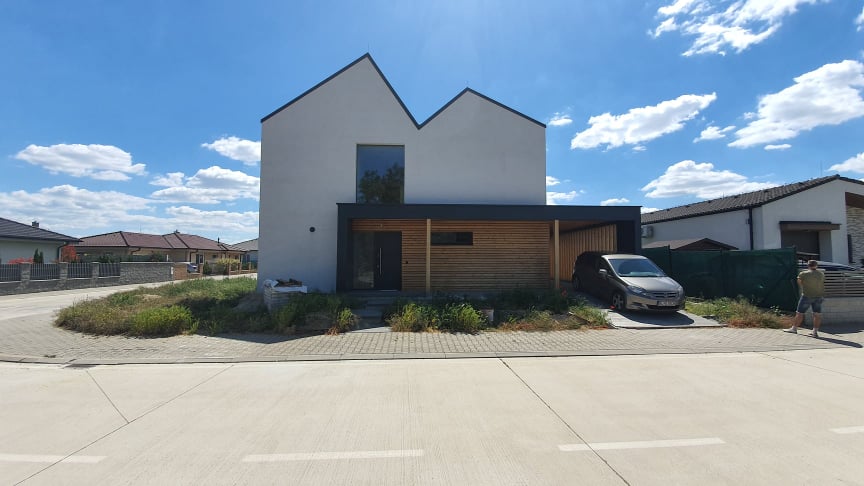

Before implementation

Samonosná brána s bráničkou a oplotením

Before implementation

Samonosná brána s bráničkou a oplotením

Wall for our columns

Samonosná brána s bráničkou a oplotením

Wall for our columns

Samonosná brána s bráničkou a oplotením

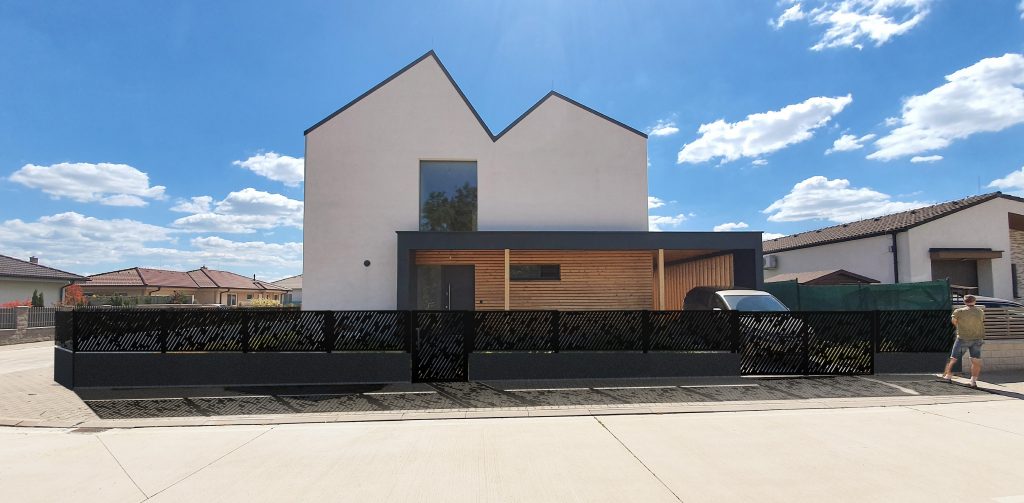

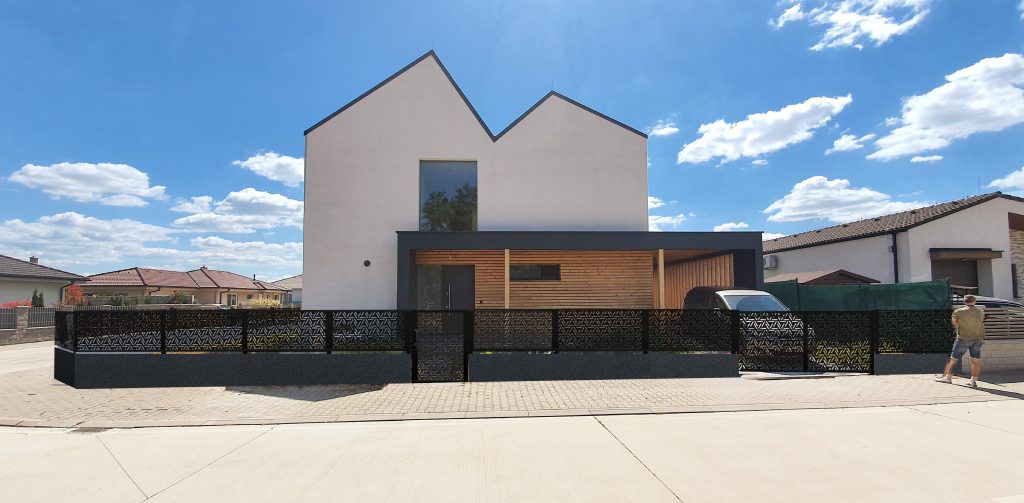

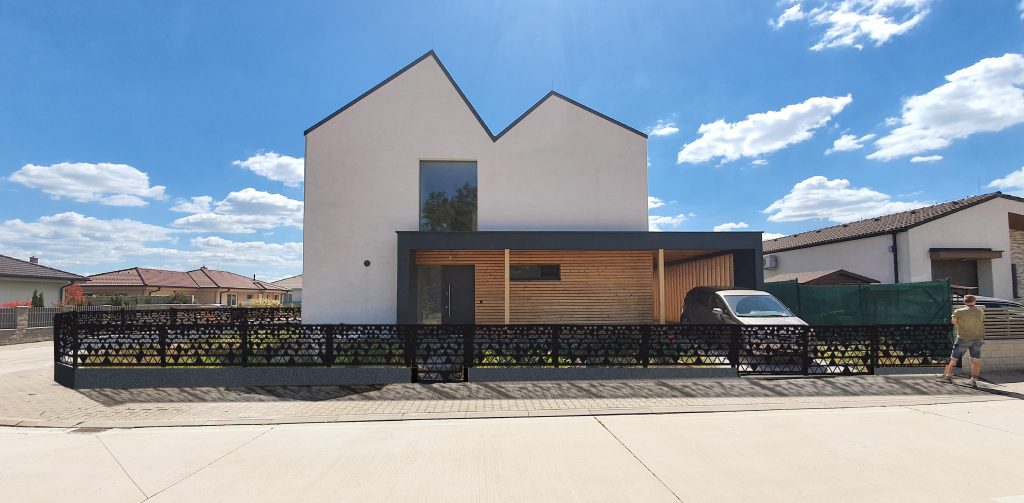

Initial visualizations

Samonosná brána s bráničkou a oplotením

Initial visualizations

Samonosná brána s bráničkou a oplotením

Initial visualizations

Samonosná brána s bráničkou a oplotením

Initial visualizations

Samonosná brána s bráničkou a oplotením

Column with its own covering system

Samonosná brána s bráničkou a oplotením
Pedestrian gate with a house number
Samonosná brána s bráničkou a oplotením

Pedestrian gate from the inside
